Parent Layer: Transportation

Name: Roads NG911

Display Field: St_Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

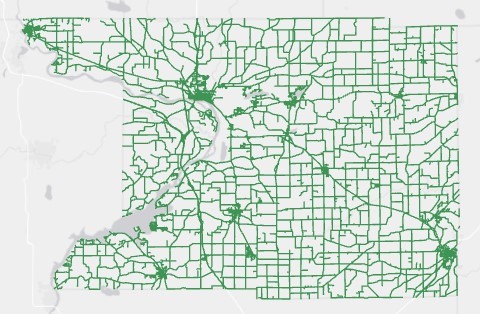

Description: Columbia County, Wisconsin road centerlines. Line feature data class representing the centerlines of all roadways within Columbia County. Road centerlines adhere to the Wisconsin Next Generation 9-1-1 (NG9-1-1) GIS Data Standard. Road centerlines are used to mark the location of roadways and provide information on the road name, street class, surface type, traffic directions, traffic speeds, street plow routing, and ATV/UTV Access of each segment. Segments also include information used by Columbia County emergency dispatch such as the address ranges on each side of the road, the emergency service area of the road, and whether the roadway is routable.

Service Item Id: cad4d15ab48d4d36bd657a7fdd162d54

Copyright Text: Columbia County Land Information Department

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 452932.04399980605
YMin: 299821.17582271993
XMax: 658678.3969419748
YMax: 432133.6671027243
Spatial Reference: 103410  (8200)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• AdNumPre_L ( type: esriFieldTypeString, alias: Left Address Number Prefix, length: 15 )
• FromAddr_L ( type: esriFieldTypeInteger, alias: Left FROM Address )
• ToAddr_L ( type: esriFieldTypeInteger, alias: Left TO Address )
• AdNumPre_R ( type: esriFieldTypeString, alias: Right Address Number Prefix, length: 15 )
• FromAddr_R ( type: esriFieldTypeInteger, alias: Right FROM Address )
• ToAddr_R ( type: esriFieldTypeInteger, alias: Right TO Address )
• St_PreMod ( type: esriFieldTypeString, alias: Street Name Pre Modifier, length: 15 )
• St_PreDir ( type: esriFieldTypeString, alias: Street Name Pre Directional, length: 10 )
• St_PreType ( type: esriFieldTypeString, alias: Street Name Pre Type, length: 50 )
• St_PreSep ( type: esriFieldTypeString, alias: Street Name Pre Type Separator, length: 20 )
• St_Name ( type: esriFieldTypeString, alias: Street Name, length: 254 )
• St_PosTyp ( type: esriFieldTypeString, alias: Street Name Post Type, length: 50 )
• St_PosDir ( type: esriFieldTypeString, alias: Street Name Post Directional, length: 10 )
• St_PosMod ( type: esriFieldTypeString, alias: Street Name Post Modifier, length: 25 )
• FullStNm ( type: esriFieldTypeString, alias: Full Street Name, length: 245 )
• abFullStNm ( type: esriFieldTypeString, alias: Abbreviated Full Street Name, length: 175 )
• STREETCLASS ( type: esriFieldTypeInteger, alias: LID Street Class , Coded Values: [92: Alley] , [1: City/Village] , [20: County Highway] , ...16 more... )
• SURFACETYPE ( type: esriFieldTypeString, alias: LID Surface Type, length: 15 , Coded Values: [PVD: Paved] , [GRV: Gravel] , [DRT: Dirt] , ...1 more... )
• OneWay ( type: esriFieldTypeString, alias: One-Way, length: 2 , Coded Values: [0: Non-routable] , [1: One-Way] , [2: Two-Way] , ...3 more... )
• SpeedLimit ( type: esriFieldTypeSmallInteger, alias: Speed Limit )
• PostCode_L ( type: esriFieldTypeString, alias: Postal Code Left, length: 7 )
• PostCode_R ( type: esriFieldTypeString, alias: Postal Code Right, length: 7 )
• PostComm_L ( type: esriFieldTypeString, alias: Postal Community Name Left, length: 40 )
• PostComm_R ( type: esriFieldTypeString, alias: Postal Community Name Right, length: 40 )
• Country_L ( type: esriFieldTypeString, alias: Country Left, length: 2 )
• Country_R ( type: esriFieldTypeString, alias: Country Right, length: 2 )
• State_L ( type: esriFieldTypeString, alias: State Left, length: 2 )
• State_R ( type: esriFieldTypeString, alias: State Right, length: 2 )
• County_L ( type: esriFieldTypeString, alias: County Left, length: 100 )
• County_R ( type: esriFieldTypeString, alias: County Right, length: 100 )
• IncMuni_L ( type: esriFieldTypeString, alias: Incorporated Municipality Left, length: 100 )
• IncMuni_R ( type: esriFieldTypeString, alias: Incorporated Municipality, length: 100 )
• DateUpdate ( type: esriFieldTypeDate, alias: Date Updated, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )
• ATVUTV ( type: esriFieldTypeString, alias: ATVUTV, length: 255 , Coded Values: [Yes: Yes] , [No: No] )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
