Parent Layer: Transportation

Name: Highways

Display Field: St_Name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

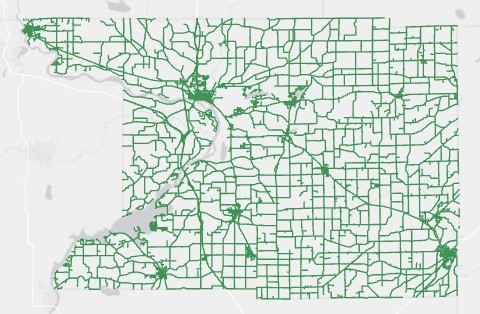

Description: Columbia County, Wisconsin road centerlines. Line feature data class representing the centerlines of all roadways within Columbia County. Road centerlines adhere to the Wisconsin Next Generation 9-1-1 (NG9-1-1) GIS Data Standard. Road centerlines are used to mark the location of roadways and provide information on the road name, street class, surface type, traffic directions, traffic speeds, street plow routing, and ATV/UTV Access of each segment. Segments also include information used by Columbia County emergency dispatch such as the address ranges on each side of the road, the emergency service area of the road, and whether the roadway is routable.

Service Item Id: cbd26e0b63a749dfb5429f4e8a0147bb

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 150000.0

Max Scale: 30001.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 452932.04399980605
YMin: 299821.17582271993
XMax: 658678.3969419748
YMax: 432133.6671027243
Spatial Reference: 103410  (8200)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: STREETCLASS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 50
  Label: Interstate Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 4
• Value: 55
  Label: Interstate Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 4
• Value: 56
  Label: Interstate Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 4
• Value: 57
  Label: Interstate Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 4
• Value: 40
  Label: US Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 47
  Label: US Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 46
  Label: US Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 45
  Label: US Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 30
  Label: State, County Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 25
  Label: State, County Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 35
  Label: State, County Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 20
  Label: State, County Highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 3
• Value: 10
  Label: Local Roads
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
• Value: 1
  Label: Local Roads
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
• Value: 60
  Label: Local Roads
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
• Value: 80
  Label: Local Roads
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
• Value: 91
  Label: Local Roads
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
• Value: 90
  Label: Local Roads
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementAboveAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 7
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 89988.0
Max. Scale: 0.0
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [RD_INDEX_ID]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 7
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 59988.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• RD_INDEX_ID ( type: esriFieldTypeInteger, alias: RD_INDEX_ID , Coded Values: [9219: 14th Rd (Marquette County)] , [9178: 18th Ct (Marquette County)] , [9170: 4th Dr (Adams County)] , ...1785 more... )
• STREETCLASS ( type: esriFieldTypeInteger, alias: STREETCLASS , Coded Values: [92: Alley] , [1: City/Village] , [20: County Highway] , ...16 more... )
• SURFACETYPE ( type: esriFieldTypeString, alias: SURFACETYPE, length: 15 , Coded Values: [PVD: Paved] , [GRV: Gravel] , [DRT: Dirt] , ...1 more... )
• OneWay ( type: esriFieldTypeString, alias: ONEWAY, length: 2 , Coded Values: [0: Non-routable] , [1: One-Way] , [2: Two-Way] , ...3 more... )
• LOCAL_PLOW_RT ( type: esriFieldTypeString, alias: LOCAL_PLOW_RT, length: 50 )
• CNTY_PLOW_RT ( type: esriFieldTypeString, alias: CNTY_PLOW_RT, length: 50 )
• ST_PLOW_RT ( type: esriFieldTypeString, alias: ST_PLOW_RT, length: 50 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )
• ATVUTV ( type: esriFieldTypeString, alias: ATV UTV Access, length: 255 , Coded Values: [Yes: Yes] , [No: No] )
• NGUID ( type: esriFieldTypeString, alias: RCL_NGUID, length: 254 )
• AdNumPre_L ( type: esriFieldTypeString, alias: AdNumPre_L, length: 15 )
• FromAddr_L ( type: esriFieldTypeInteger, alias: FromAddr_L )
• ToAddr_L ( type: esriFieldTypeInteger, alias: ToAddr_L )
• AdNumPre_R ( type: esriFieldTypeString, alias: AdNumPre_R, length: 15 )
• FromAddr_R ( type: esriFieldTypeInteger, alias: FromAddr_R )
• ToAddr_R ( type: esriFieldTypeInteger, alias: ToAddr_R )
• St_PreMod ( type: esriFieldTypeString, alias: St_PreMod, length: 15 )
• St_PreDir ( type: esriFieldTypeString, alias: St_PreDir, length: 10 )
• St_PreType ( type: esriFieldTypeString, alias: St_PreType, length: 50 )
• St_PreSep ( type: esriFieldTypeString, alias: St_PreSep, length: 20 )
• St_Name ( type: esriFieldTypeString, alias: St_Name, length: 254 )
• St_PosTyp ( type: esriFieldTypeString, alias: St_PosTyp, length: 50 )
• St_PosDir ( type: esriFieldTypeString, alias: St_PosDir, length: 10 )
• St_PosMod ( type: esriFieldTypeString, alias: St_PosMod, length: 25 )
• FullStNm ( type: esriFieldTypeString, alias: FullStNm, length: 245 )
• abFullStNm ( type: esriFieldTypeString, alias: abFullStNm, length: 175 )
• LSt_PreDir ( type: esriFieldTypeString, alias: LSt_PreDir, length: 2 )
• LSt_Name ( type: esriFieldTypeString, alias: LSt_Name, length: 75 )
• LSt_Type ( type: esriFieldTypeString, alias: LSt_Type, length: 4 )
• LSt_PosDir ( type: esriFieldTypeString, alias: LSt_PosDir, length: 2 )
• PostCode_L ( type: esriFieldTypeString, alias: PostCode_L, length: 7 )
• PostCode_R ( type: esriFieldTypeString, alias: PostCode_R, length: 7 )
• PostComm_L ( type: esriFieldTypeString, alias: PostComm_L, length: 40 )
• PostComm_R ( type: esriFieldTypeString, alias: PostComm_R, length: 40 )
• Country_L ( type: esriFieldTypeString, alias: Country_L, length: 2 )
• Country_R ( type: esriFieldTypeString, alias: Country_R, length: 2 )
• State_L ( type: esriFieldTypeString, alias: State_L, length: 2 )
• State_R ( type: esriFieldTypeString, alias: State_R, length: 2 )
• County_L ( type: esriFieldTypeString, alias: County_L, length: 100 )
• County_R ( type: esriFieldTypeString, alias: County_R, length: 100 )
• IncMuni_L ( type: esriFieldTypeString, alias: IncMuni_L, length: 100 )
• IncMuni_R ( type: esriFieldTypeString, alias: IncMuni_R, length: 100 )
• UnincCom_L ( type: esriFieldTypeString, alias: UnincCom_L, length: 100 )
• UnincCom_R ( type: esriFieldTypeString, alias: UnincCom_R, length: 100 )
• NbrhdCom_L ( type: esriFieldTypeString, alias: NbrhdCom_L, length: 100 )
• NbrhdCom_R ( type: esriFieldTypeString, alias: NbrhdCom_R, length: 100 )
• AddCode_L ( type: esriFieldTypeString, alias: AddCode_L, length: 6 )
• AddCode_R ( type: esriFieldTypeString, alias: AddCode_R, length: 6 )
• SpeedLimit ( type: esriFieldTypeSmallInteger, alias: SpeedLimit )
• RoadClass ( type: esriFieldTypeString, alias: RoadClass, length: 24 )
• DateUpdate ( type: esriFieldTypeDate, alias: DateUpdate, length: 8 )
• Effective ( type: esriFieldTypeDate, alias: Effective, length: 8 )
• Expire ( type: esriFieldTypeDate, alias: Expire, length: 8 )
• DiscrAgID ( type: esriFieldTypeString, alias: DiscrAgID, length: 100 )
• Parity_L ( type: esriFieldTypeString, alias: Parity_L, length: 1 )
• Parity_R ( type: esriFieldTypeString, alias: Parity_R, length: 1 )
• ESN_L ( type: esriFieldTypeString, alias: ESN_L, length: 5 )
• ESN_R ( type: esriFieldTypeString, alias: ESN_R, length: 5 )
• MSAGComm_L ( type: esriFieldTypeString, alias: MSAGComm_L, length: 30 )
• MSAGComm_R ( type: esriFieldTypeString, alias: MSAGComm_R, length: 30 )
• Valid_L ( type: esriFieldTypeString, alias: Valid_L, length: 1 )
• Valid_R ( type: esriFieldTypeString, alias: Valid_R, length: 1 )
• ST_ID ( type: esriFieldTypeInteger, alias: ST_ID )
• FrElev ( type: esriFieldTypeSmallInteger, alias: FrElev )
• ToElev ( type: esriFieldTypeSmallInteger, alias: ToElev )
• Exception ( type: esriFieldTypeString, alias: Exception, length: 75 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
